Number:

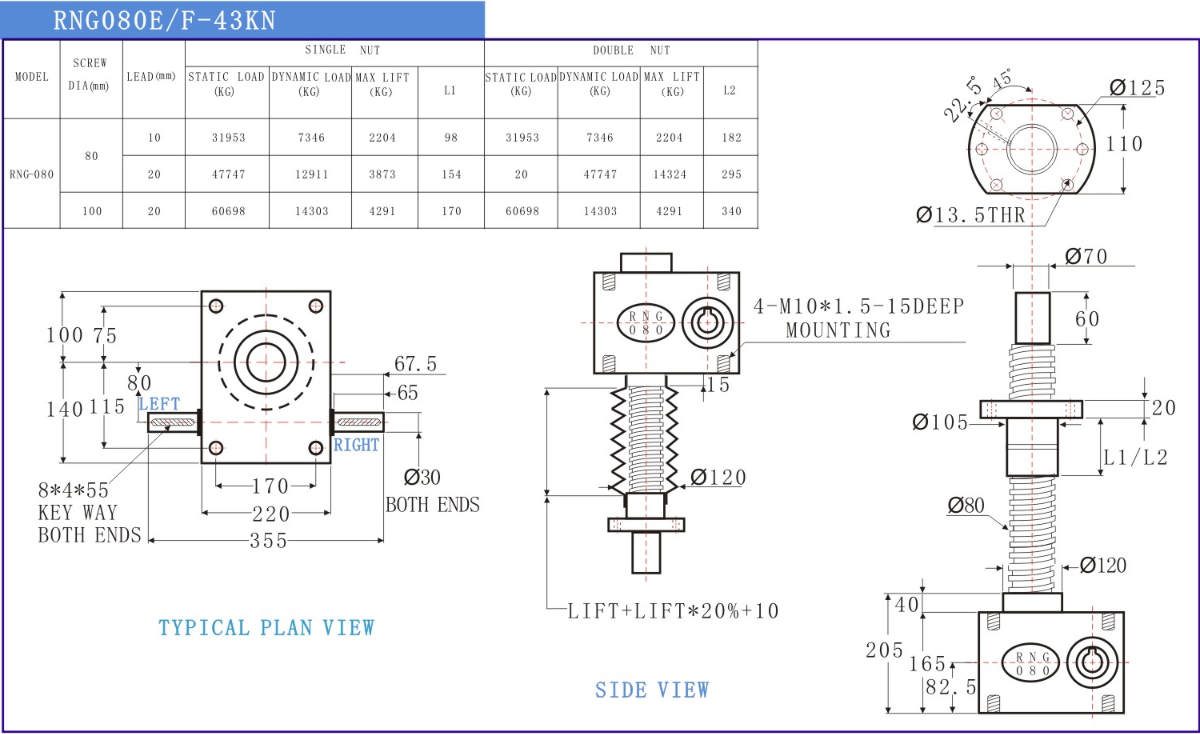

Ball Screw Jack RNG-080E/F
Retail price
Market price

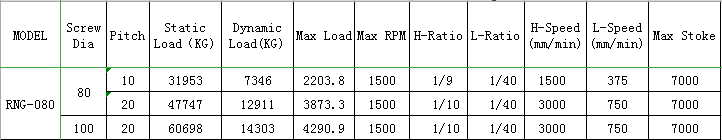

* Model: RNG-080E/F
* Screw Diam: 80 or 100 mm
* Screw Pitch: 10 or 20 mm
* Static Load: max 606 KN
* Dynamic Load: max 143 KN
* Speed Ratio: 1/9 1/10 1/40
* Lifting Speed: max 3000 mm/min
* Max Stoke: 7000 mm
* Max Input: 1500 rpm
* Screw Type: ball screw
* Top End: plain end
* Power Source: electric, manual, both
Product Categories:
Ball Screw Jack RNG
Keywords:Screw elevator
Weight
kg
Quantity
-
+
Inventory
隐藏域元素占位
- Model
- Installation

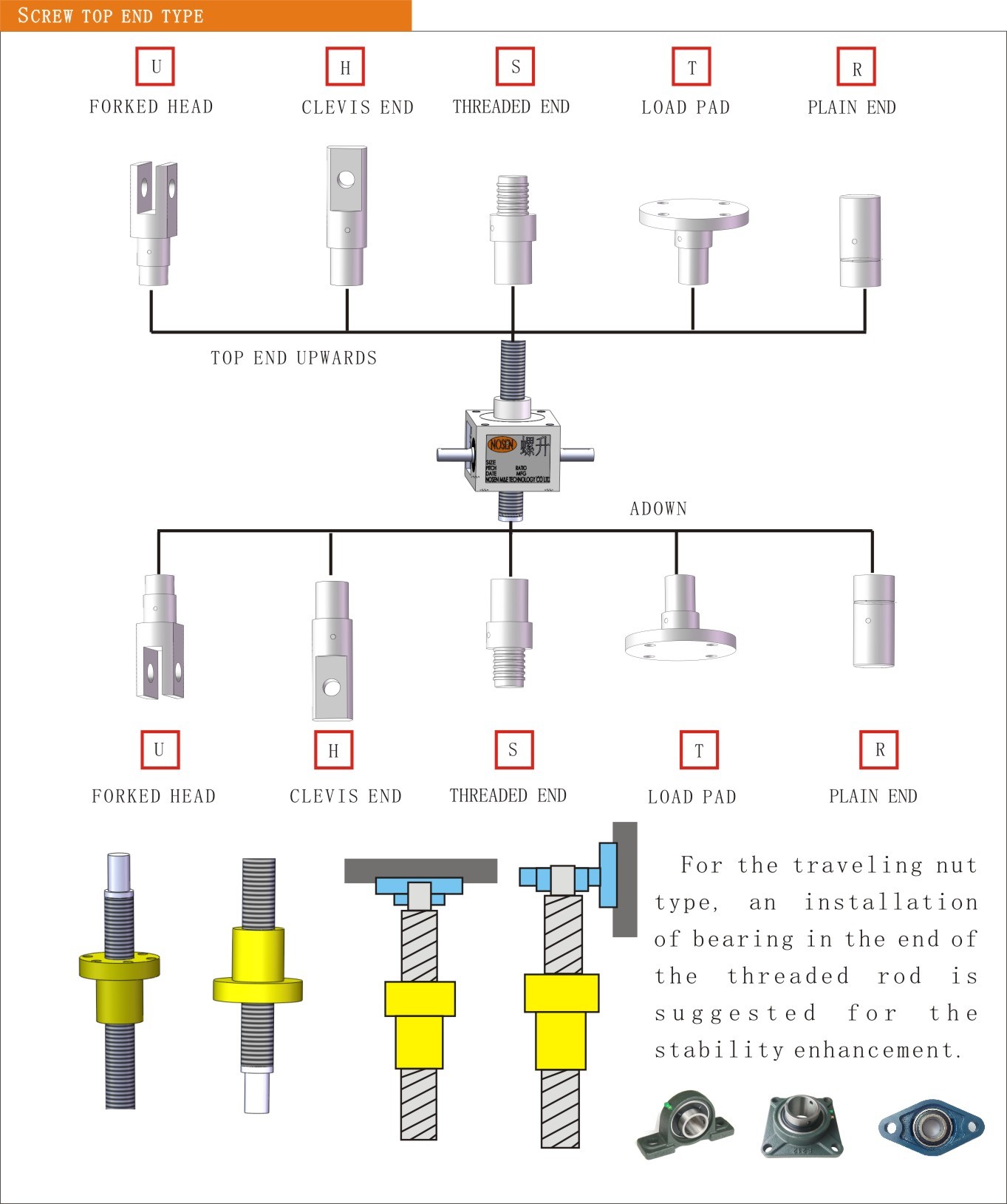

- Screw top end
- Input from

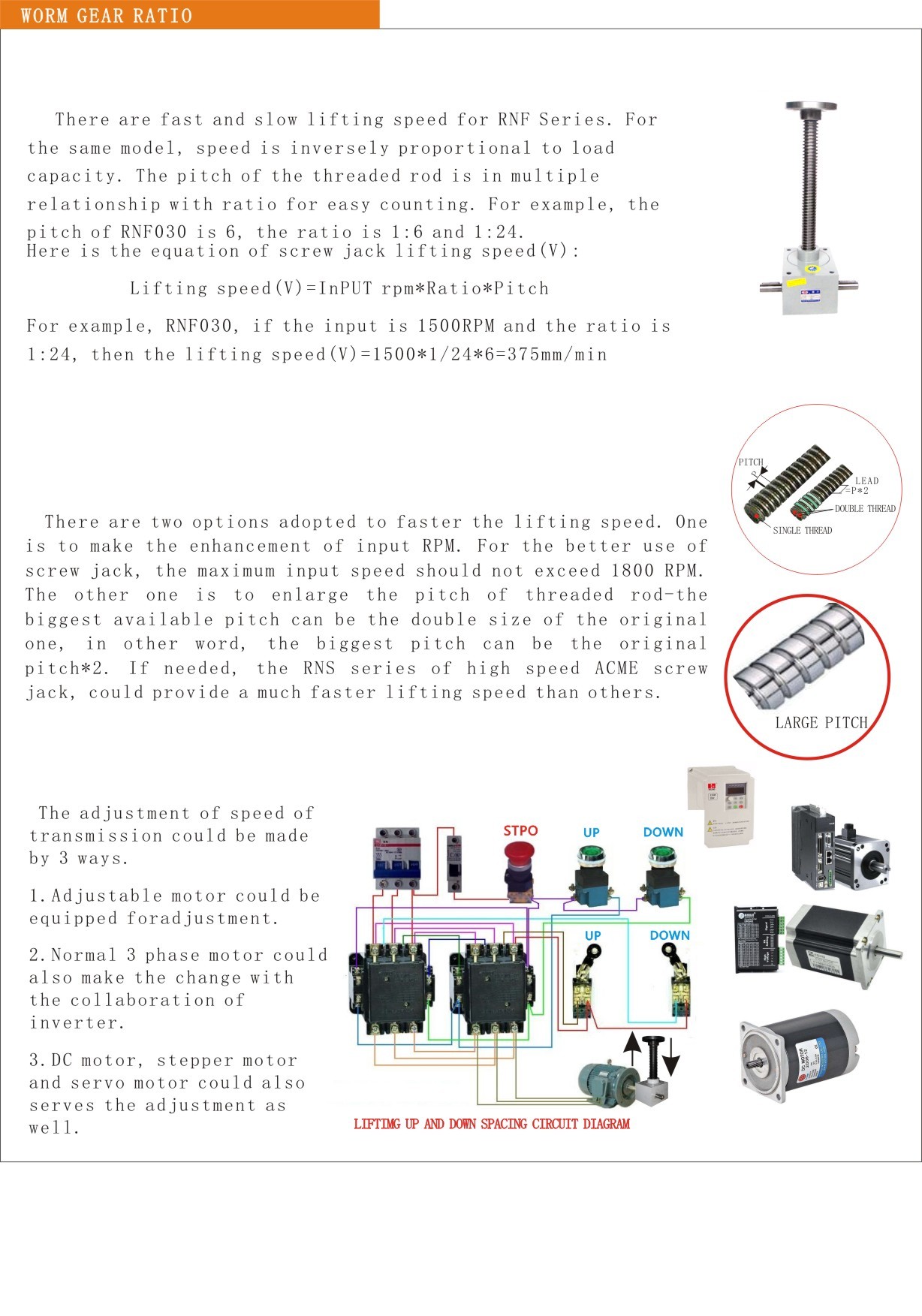

- Gear ratio
- Stroke

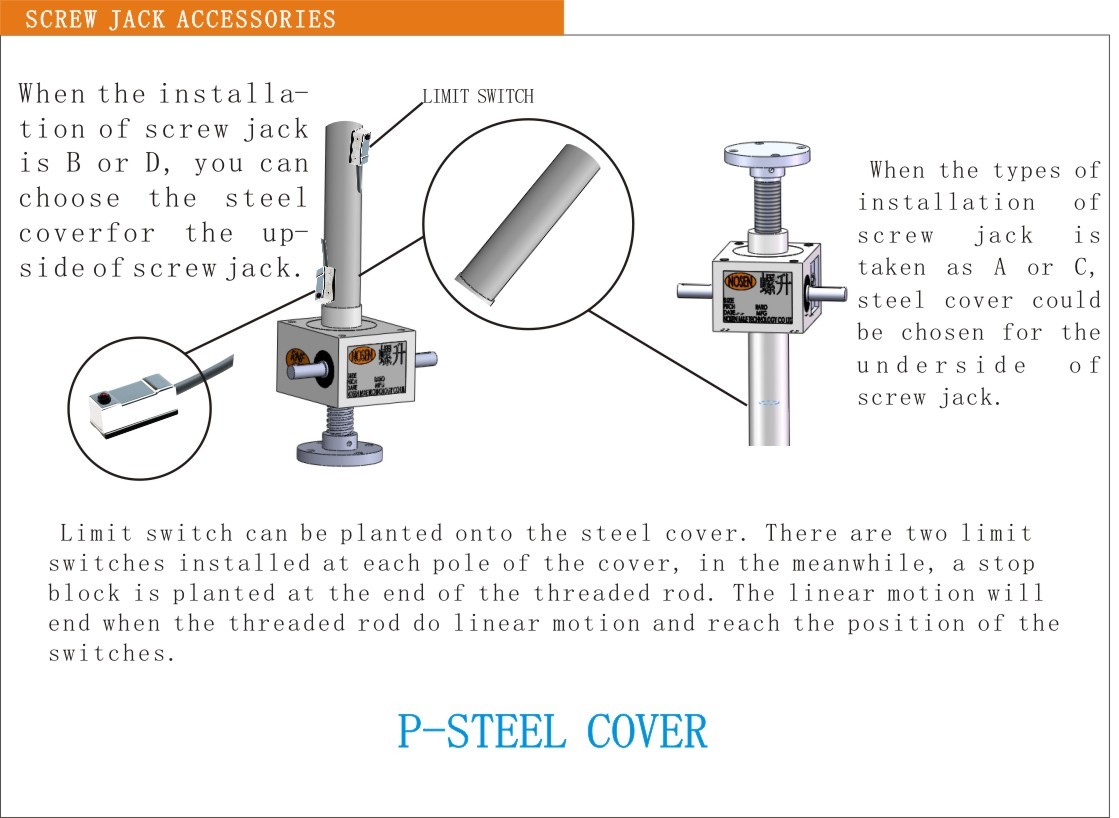

- Steel cover
- Rubber bellows
- Hand wheel
- View
