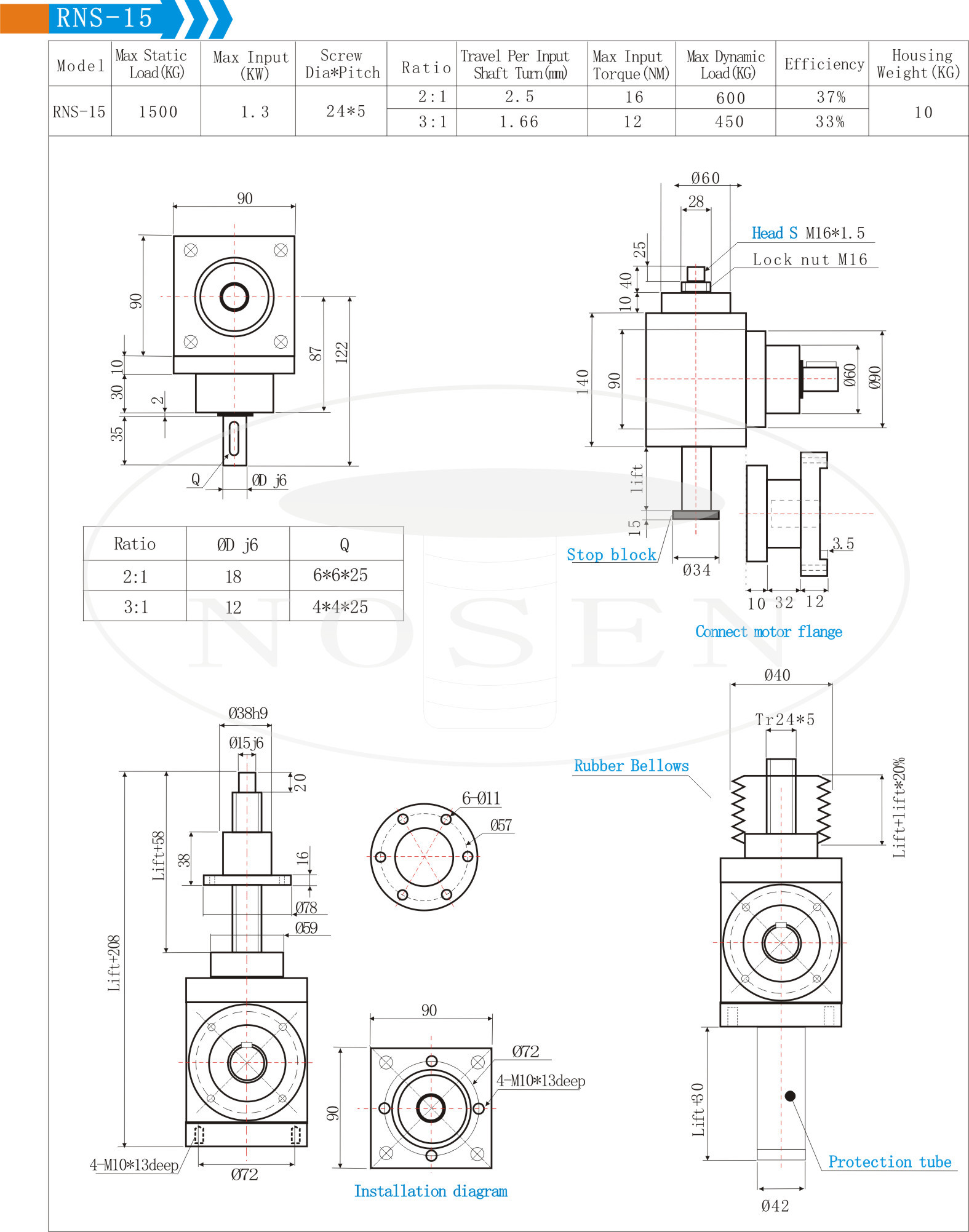

Bevel gear screw jack RNS-15
- Screw top end
- Input from
- Gear ratio
- Steel cover
- Rubber bellows
- Hand wheel
1/2, fast speed, 1 turn 2.5 mm travel
1/3, low speed, 1 turn 1.66 mm travel

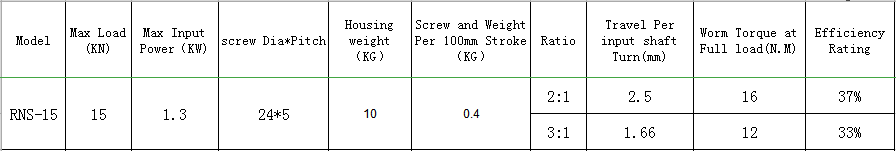

About the relationship of gear ratio, lifting capacity, input power and input torque, please return to RNS-15 model.
