Bevel gear ball screw jack RNM-25
Retail price
Market price
Keywords:Screw elevator
Weight
kg
Inventory
隐藏域元素占位
- Model

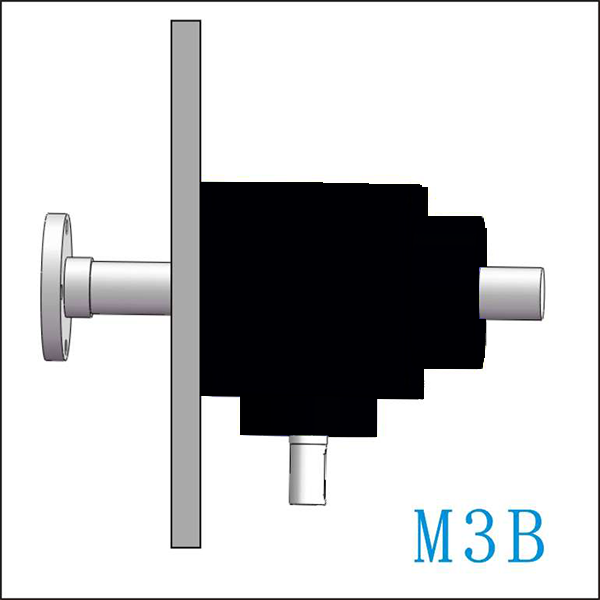

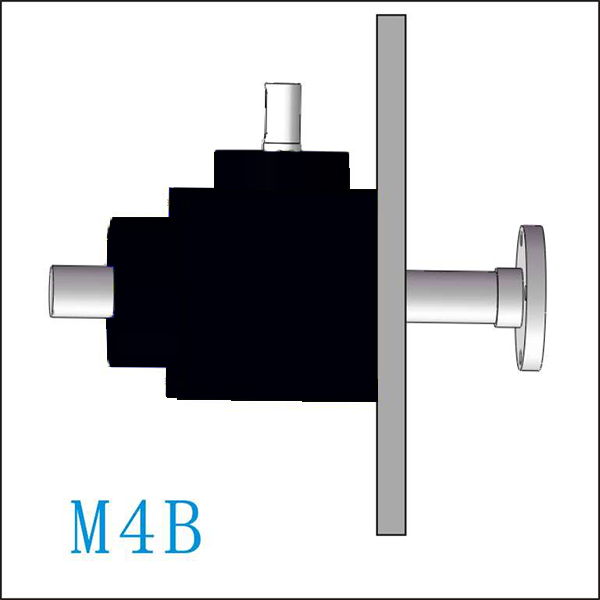

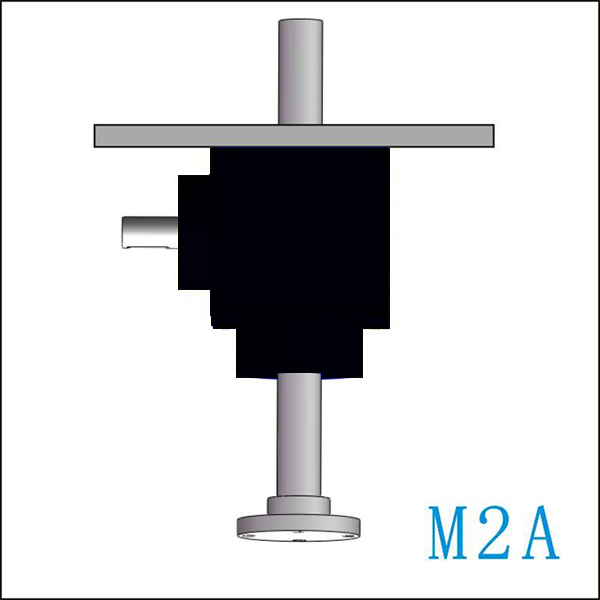

- Installation

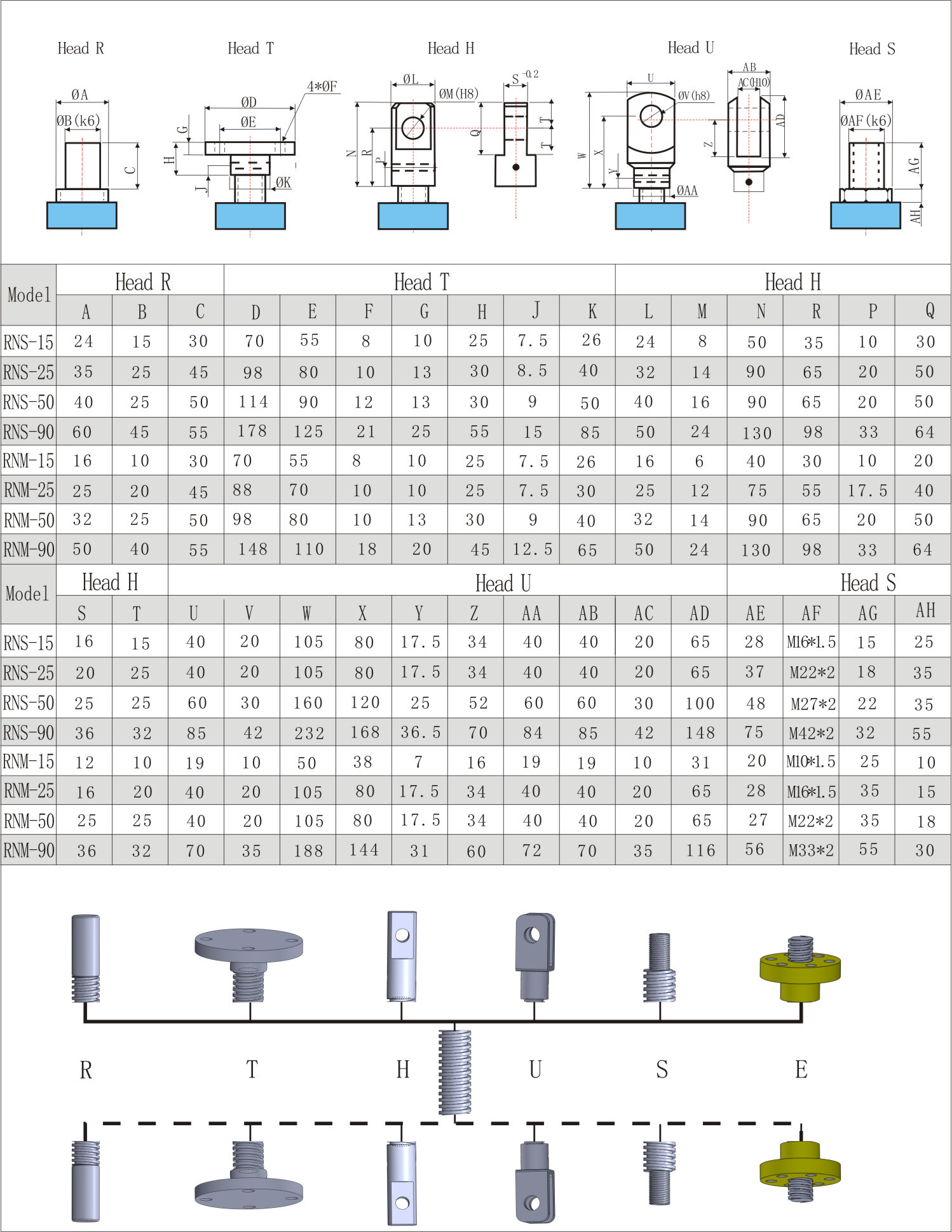

- Screw top end

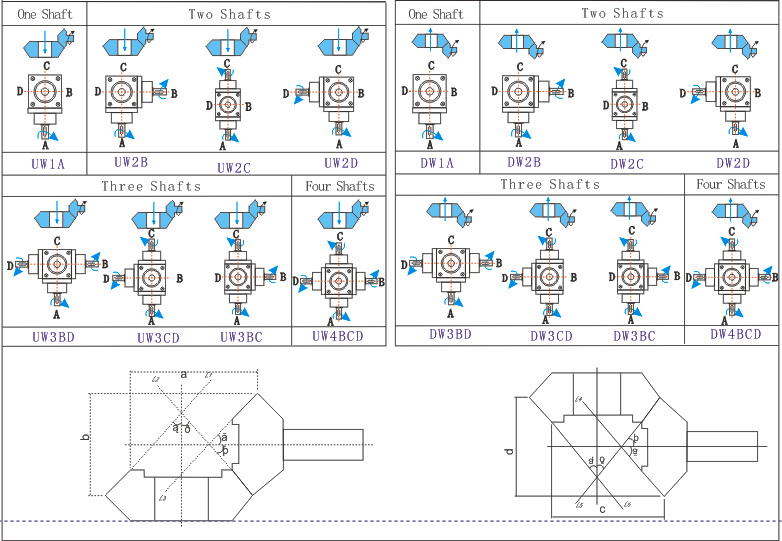

- Input from
- Gear ratio
- Stroke

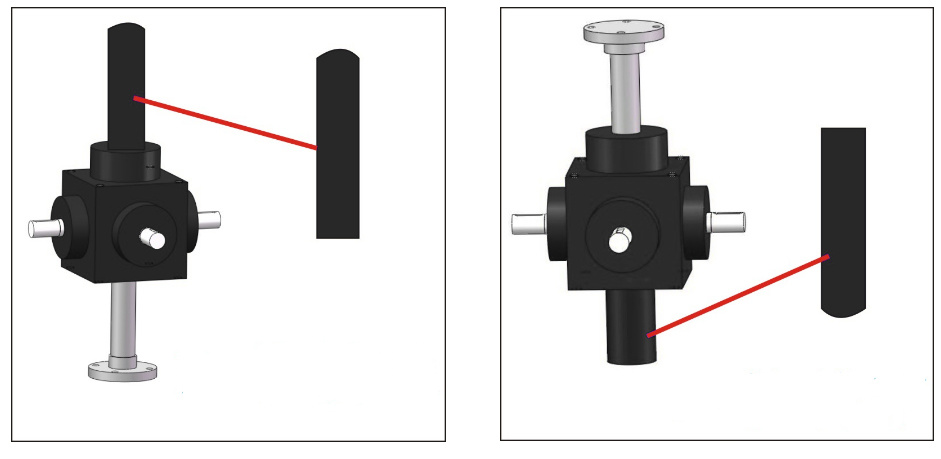

- Steel cover
- Rubber bellows
- Hand wheel
- View
-
-
-
-
-

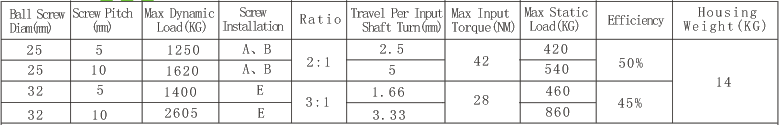

1/2, fast speed, 1 turn 2.5 mm or 5 mm travel
1/3, low speed, 1 turn 1.66 mm or 3.33 mm travel
About the relationship of gear ratio, lifting capacity and input torque, please return RNM-25 model.
-
-
-
-
-
