Ball Screw Jack RNG-040
Retail price
Market price

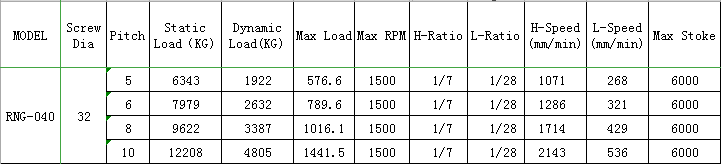

* Model: RNG-040
* Screw Diam: 32 mm
* Screw Pitch: 5, 6, 8 or 10 mm
* Static Load: max 122 KN
* Dynamic Load: max 48 KN
* Speed Ratio: 1/7 1/28
* Lifting Speed: max 2143 mm/min
* Max Stoke: 6000 mm
* Max Input: 1500 rpm
* Screw Type: ball screw
* Top End: plain end
* Power Source: electric, manual, both
Product Categories:
Ball Screw Jack RNG
Keywords:Screw elevator
Weight
kg
Quantity
-
+
Inventory
隐藏域元素占位
- Model

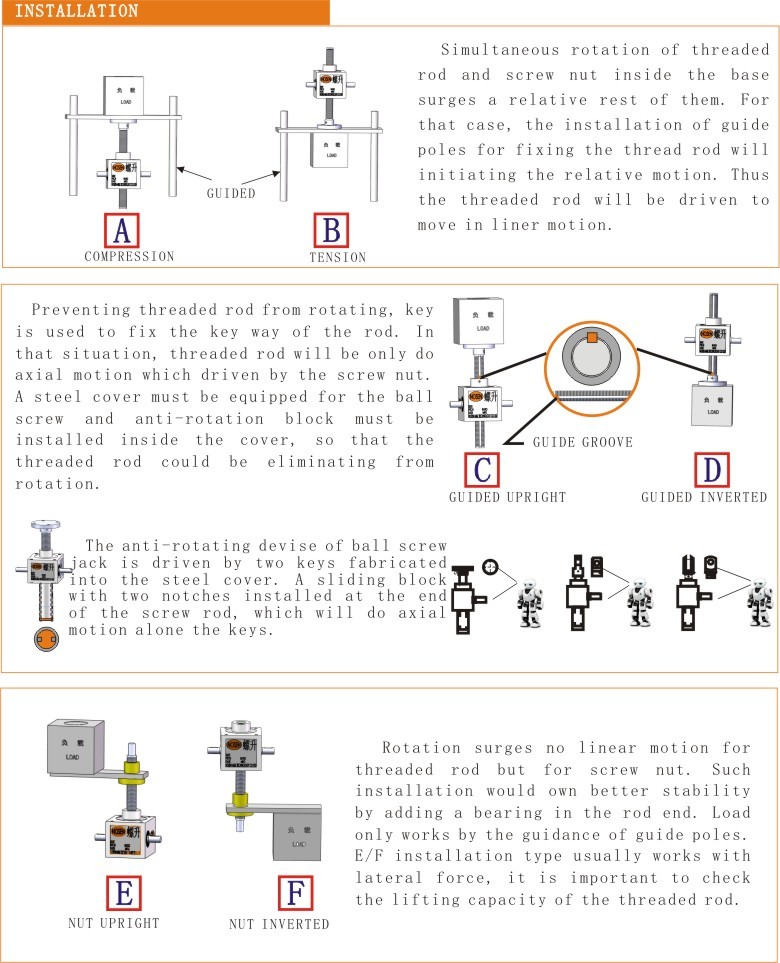

- Installation

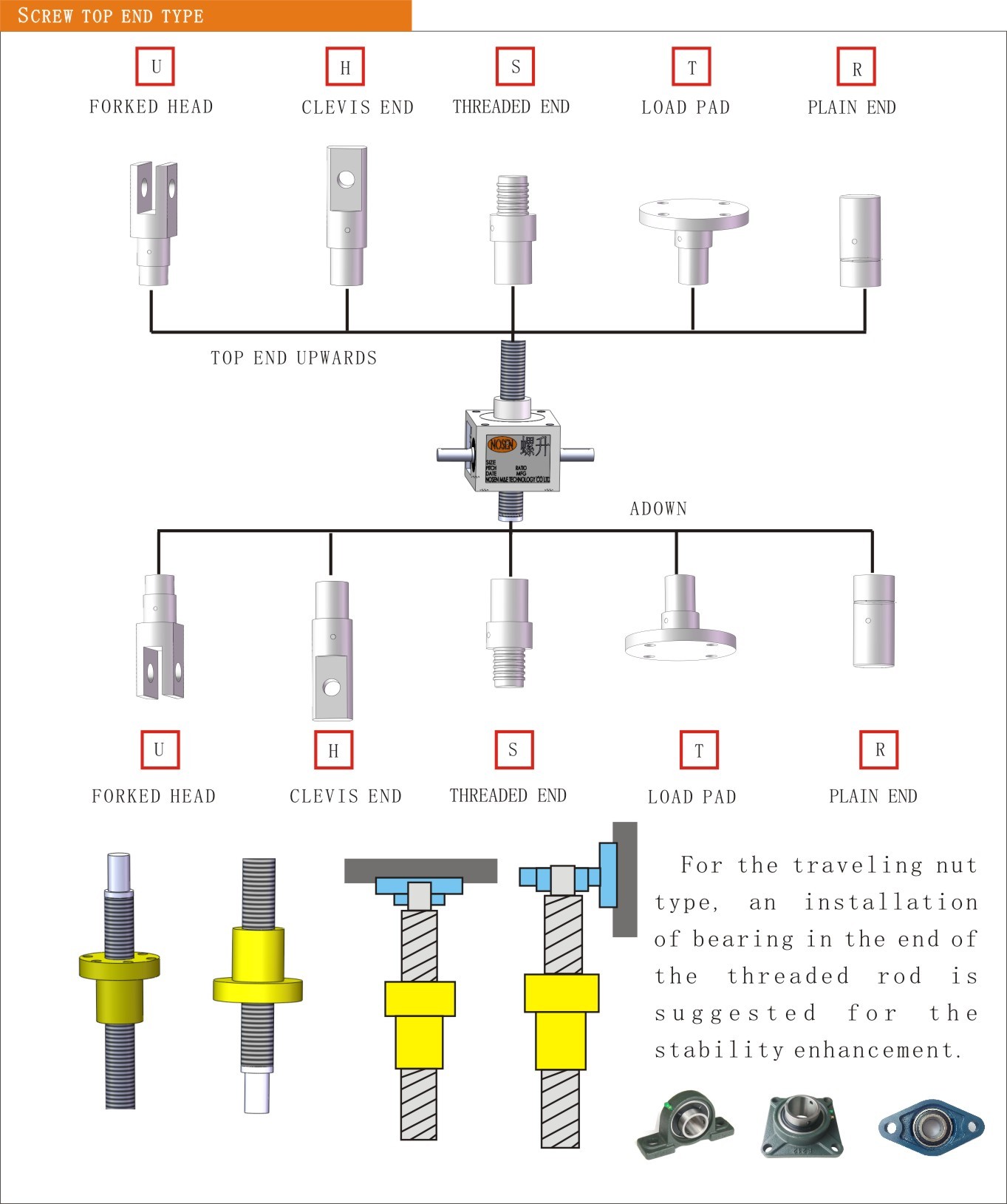

- Screw top end
- Input from
- Gear ratio

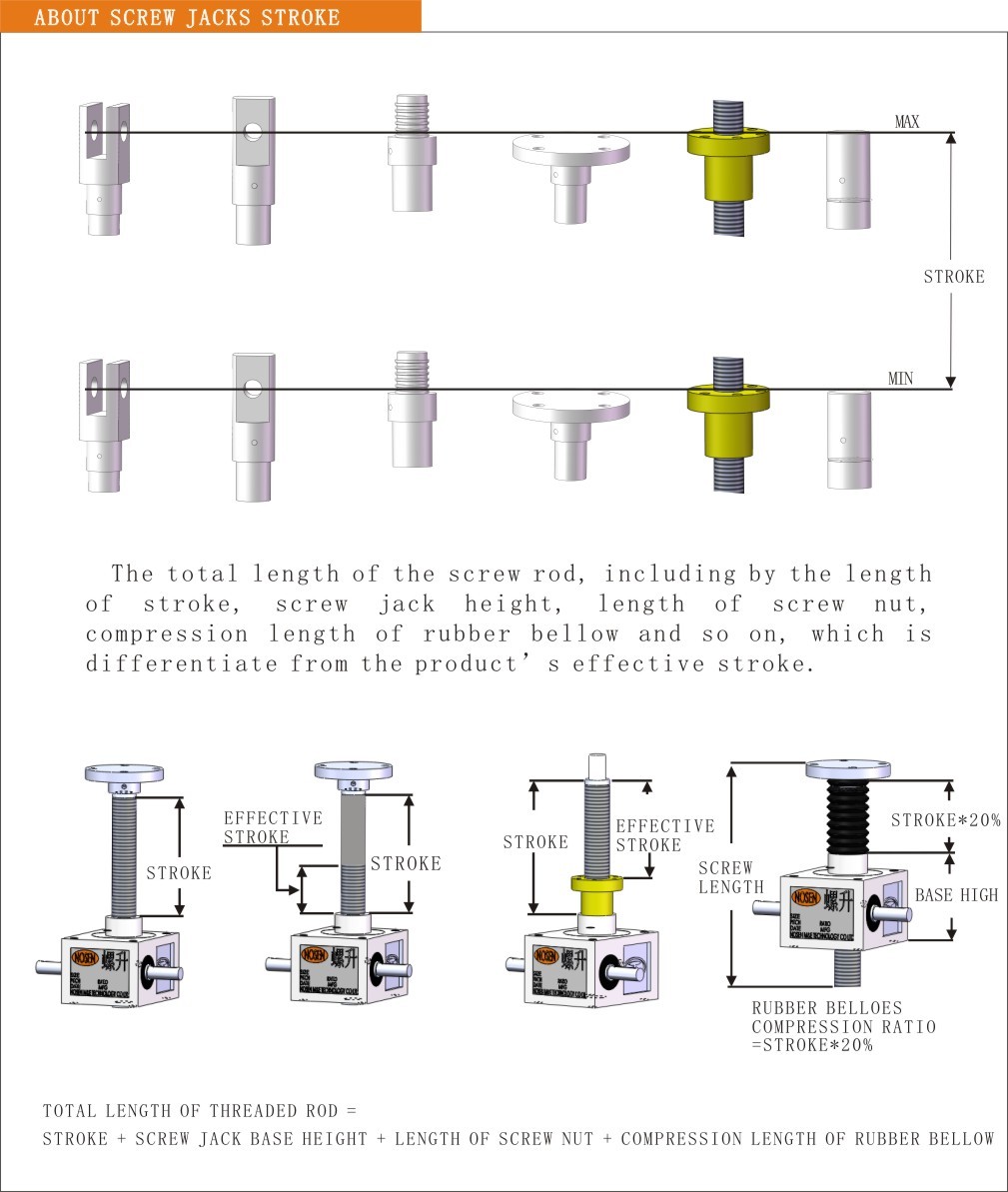

- Stroke
- Steel cover
- Rubber bellows

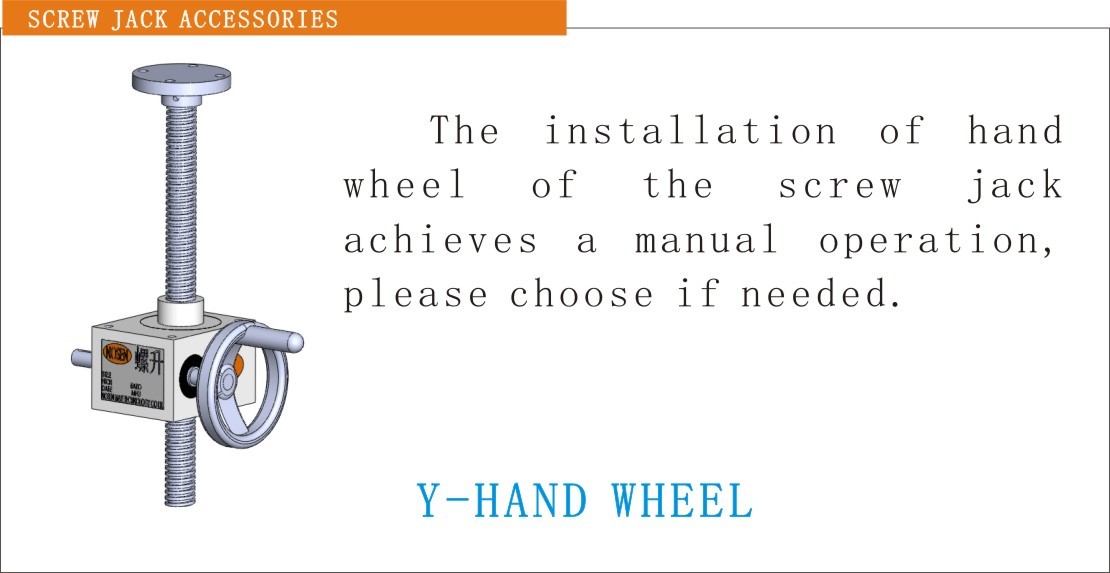

- Hand wheel
- View
