Ball Screw Jack RNG-030
Retail price
Market price

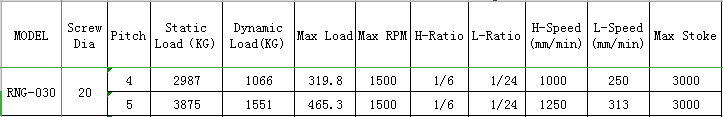

* Model: RNG-030
* Screw Diam: 20 mm
* Screw Pitch: 4 or 5 mm
* Static Load: max 38 KN
* Dynamic Load: max 15 KN
* Speed Ratio: 1/6 1/24
* Lifting Speed: max 1250 mm/min
* Max Stoke: 3000 mm
* Max Input: 1500 rpm
* Screw Type: ball screw
* Top End: plain end
* Power Source: electric, manual, both
Product Categories:
Ball Screw Jack RNG
Keywords:Screw elevator
Weight
kg
Quantity
-
+
Inventory
隐藏域元素占位
- Model

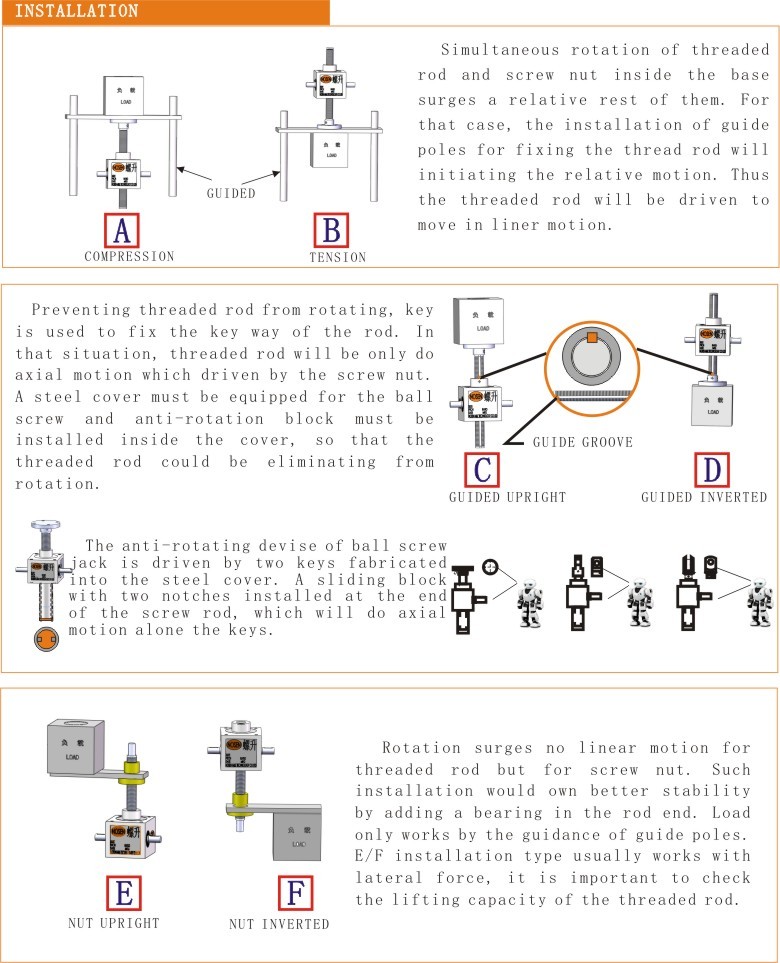

- Installation

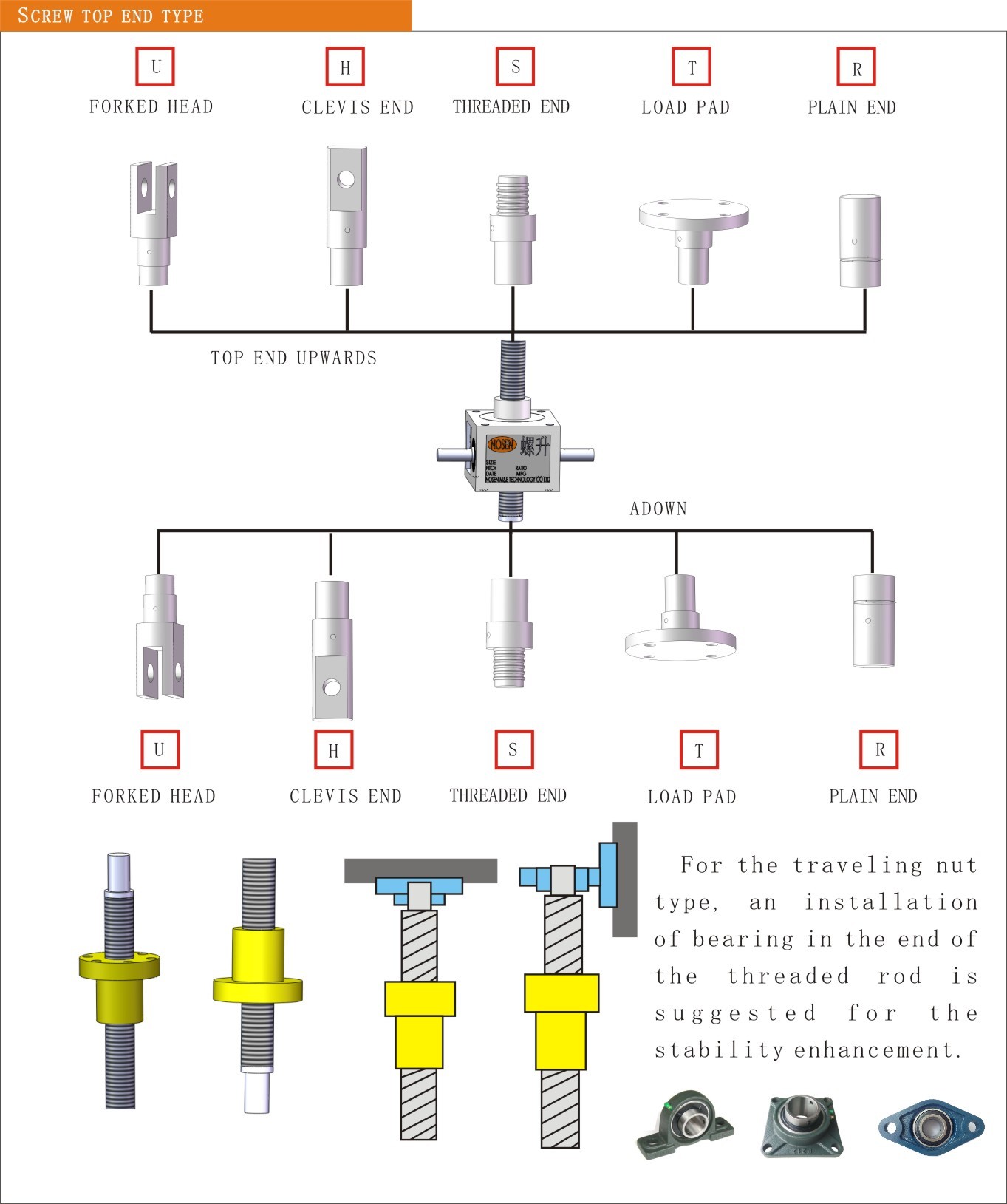

- Screw top end

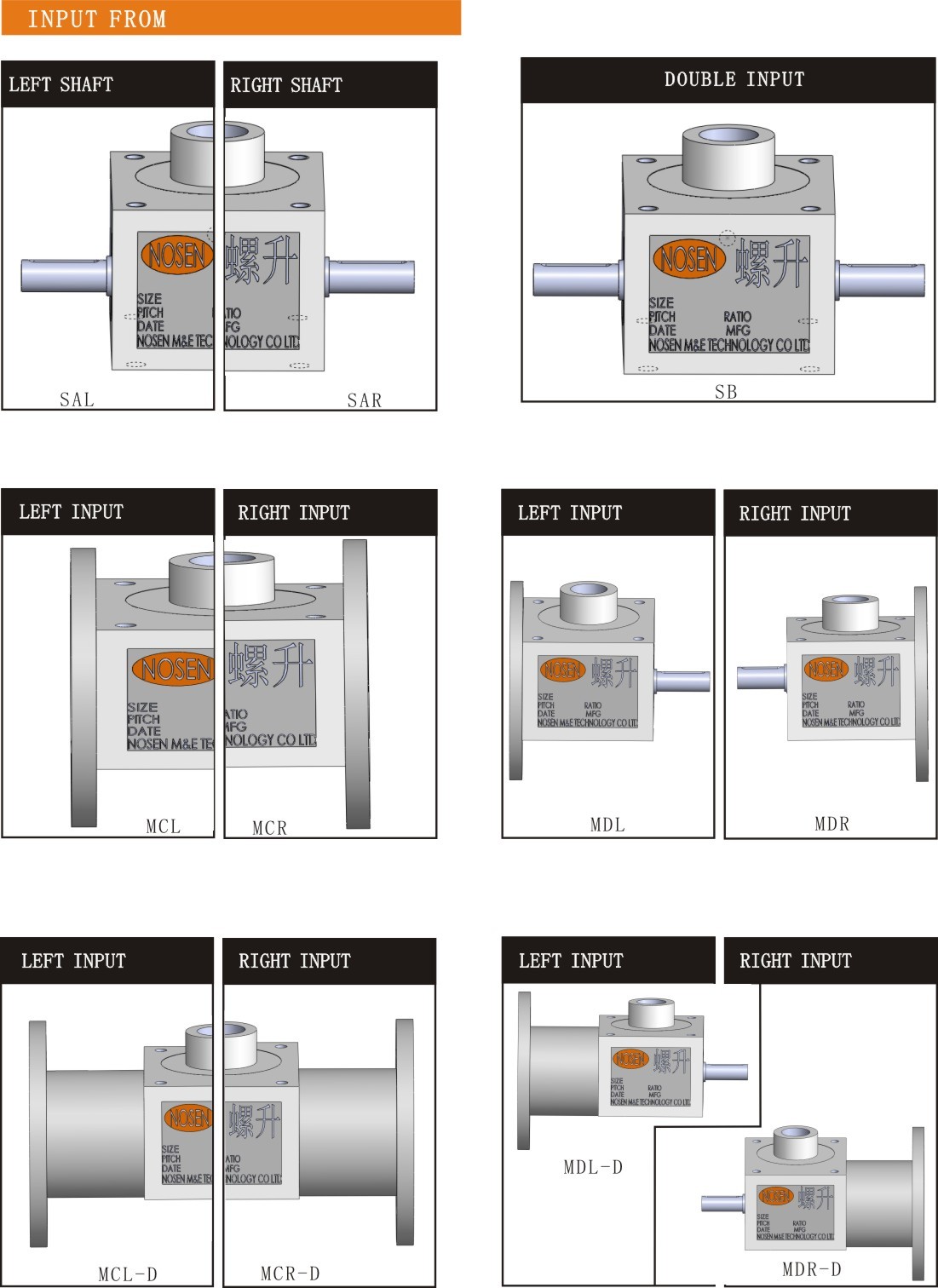

- Input from
- Gear ratio
- Stroke
- Steel cover
- Rubber bellows

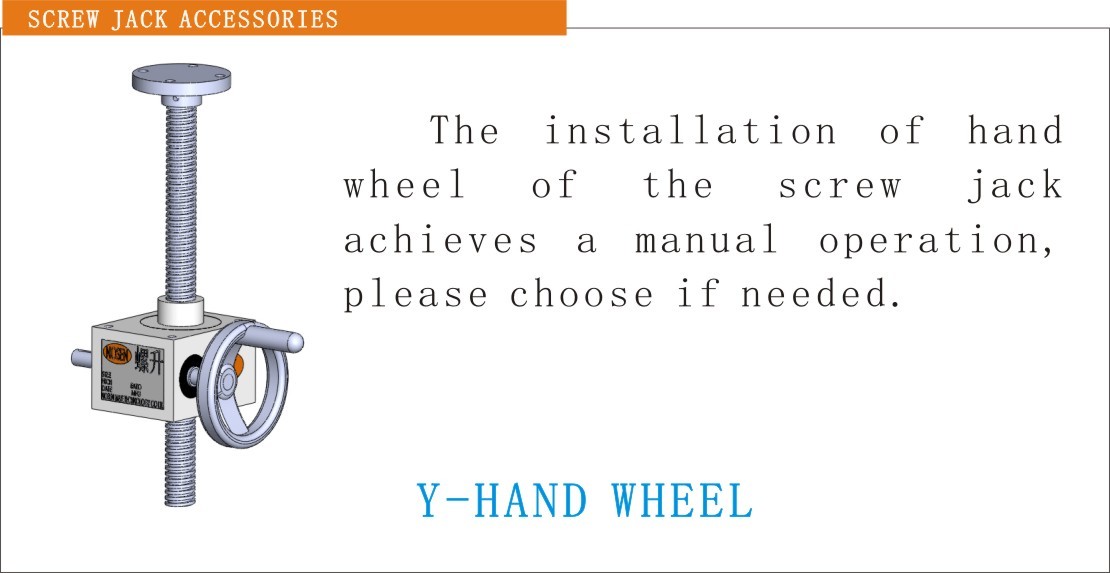

- Hand wheel
- View
