Ball Screw Jack RNG-018E/F
Retail price
Market price

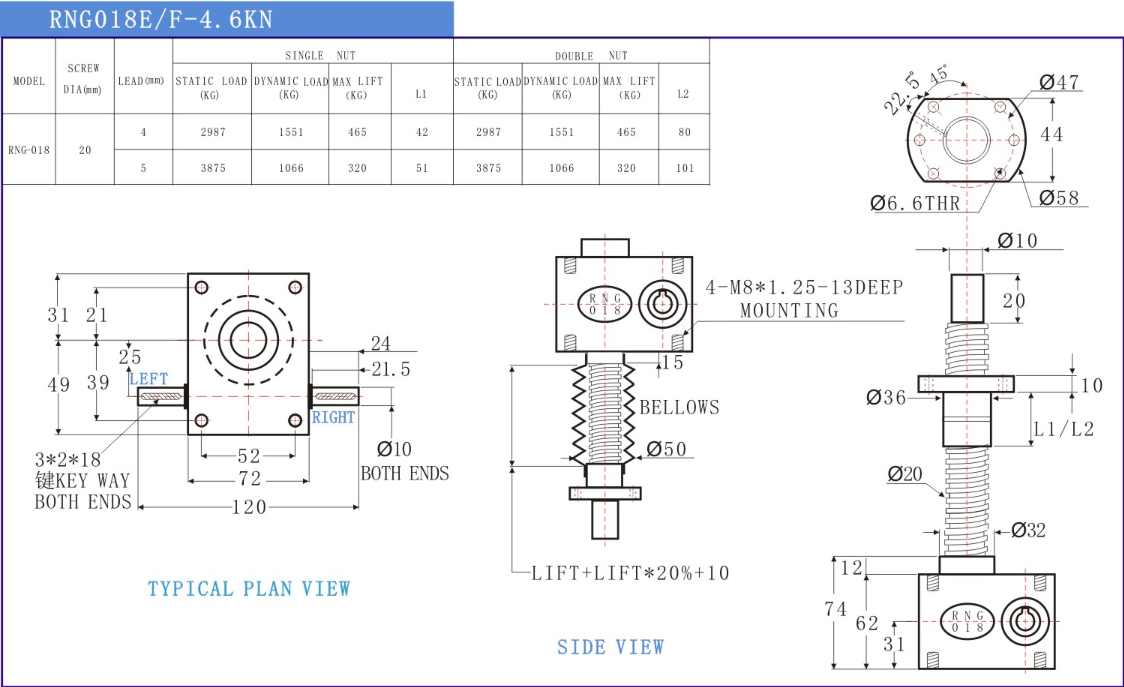

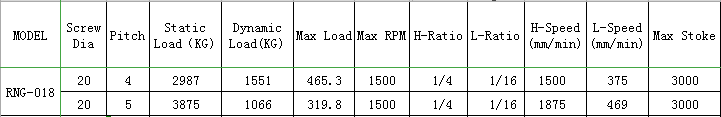

*Model: RNG-018E/F
*Screw Diam: 20 mm
*Screw Pitch: 4 or 5 mm
*Static Load: max 38 KN
*Dynamic Load: max 15 KN
*Speed Ratio: 1/4 1/16
*Lifting Speed: max 1875 mm/min
*Max Stoke: 3000 mm
*Max Input: 1500 rpm
*Screw Type: ball screw
*Top End: plainend
*Power Source: electric, manual, both
Product Categories:
Ball Screw Jack RNG
Keywords:Screw elevator
Weight
kg
Quantity
-
+
Inventory
隐藏域元素占位
- Model
- Installation

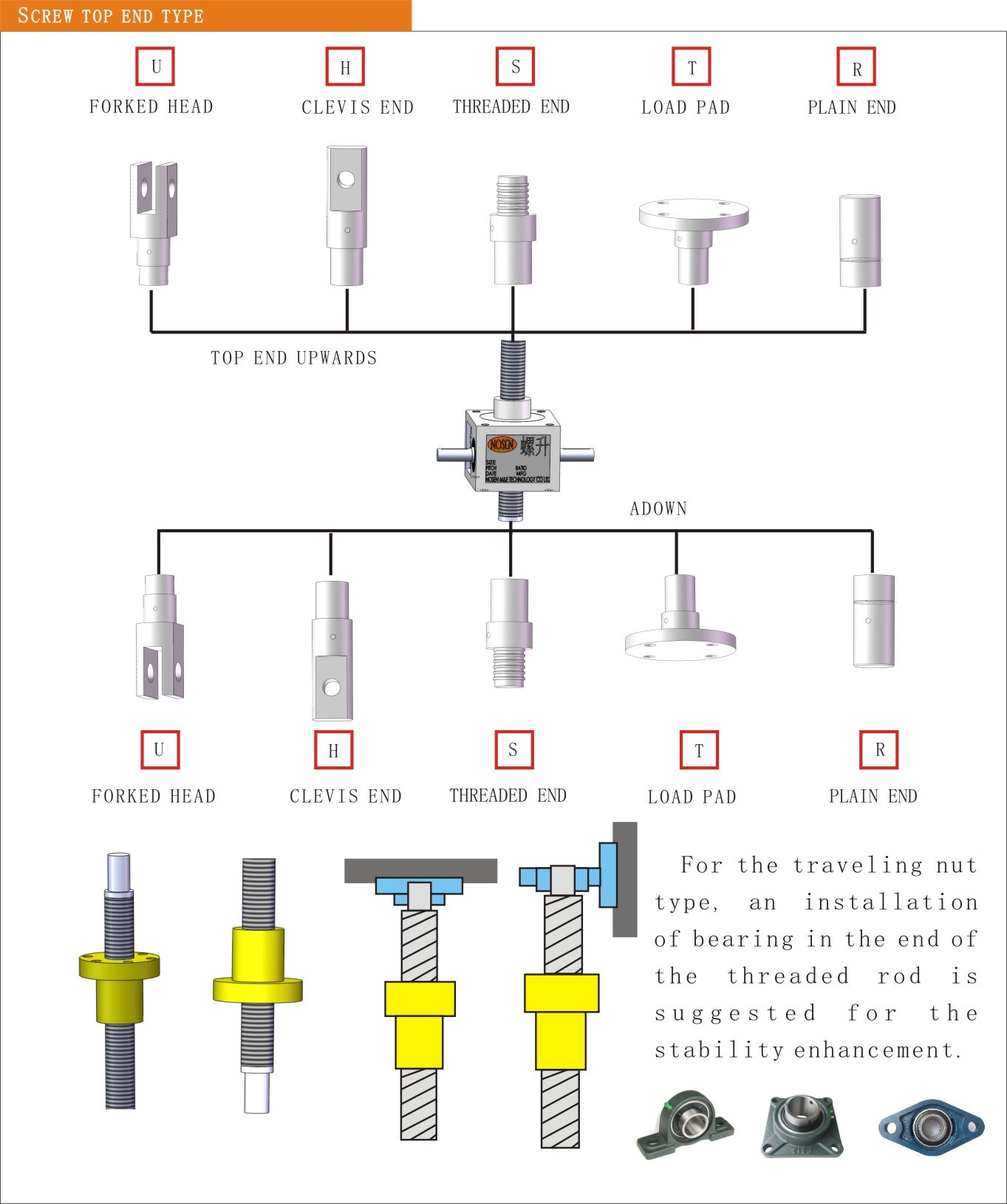

- Screw top end

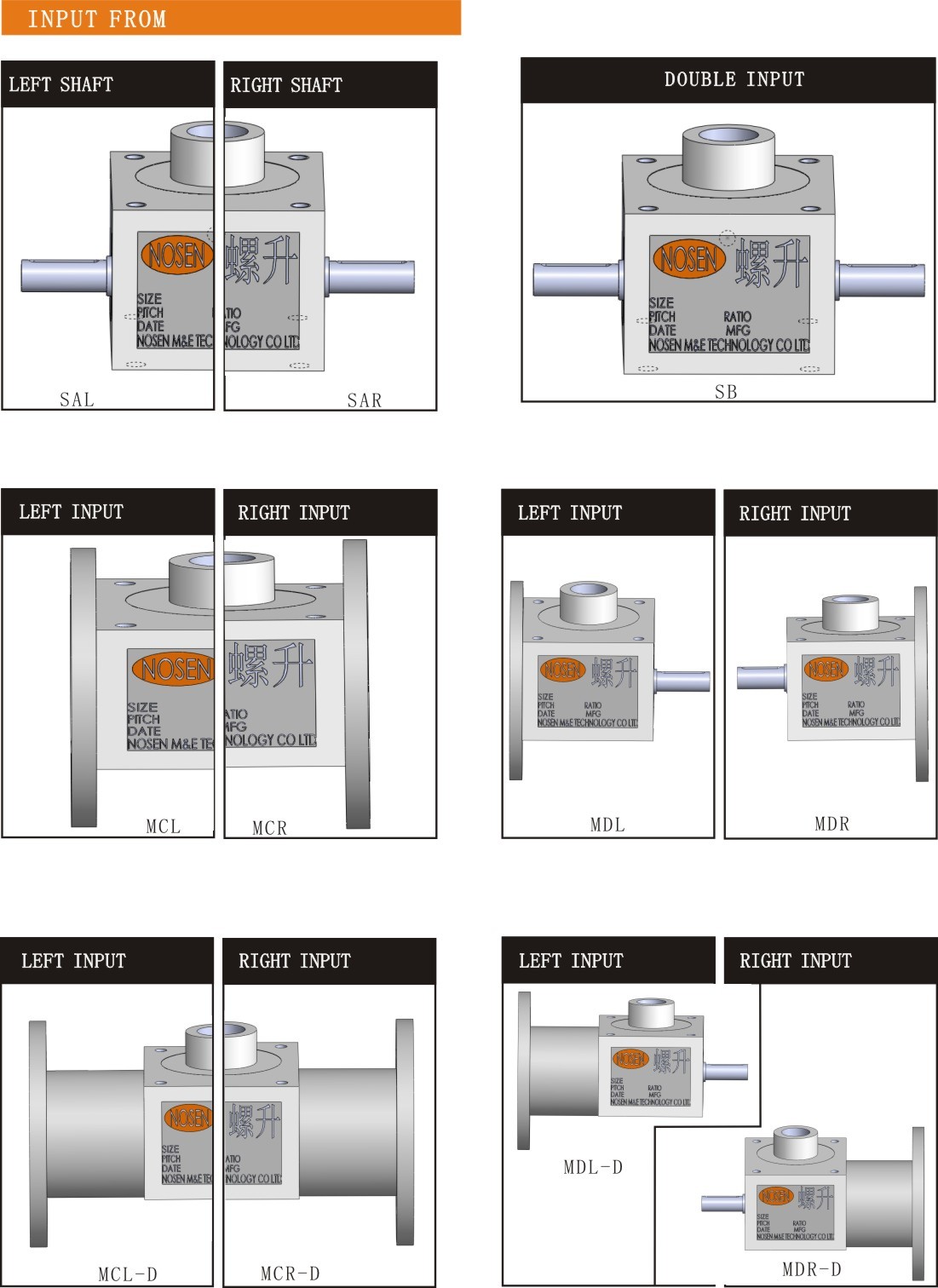

- Input from
- Gear ratio

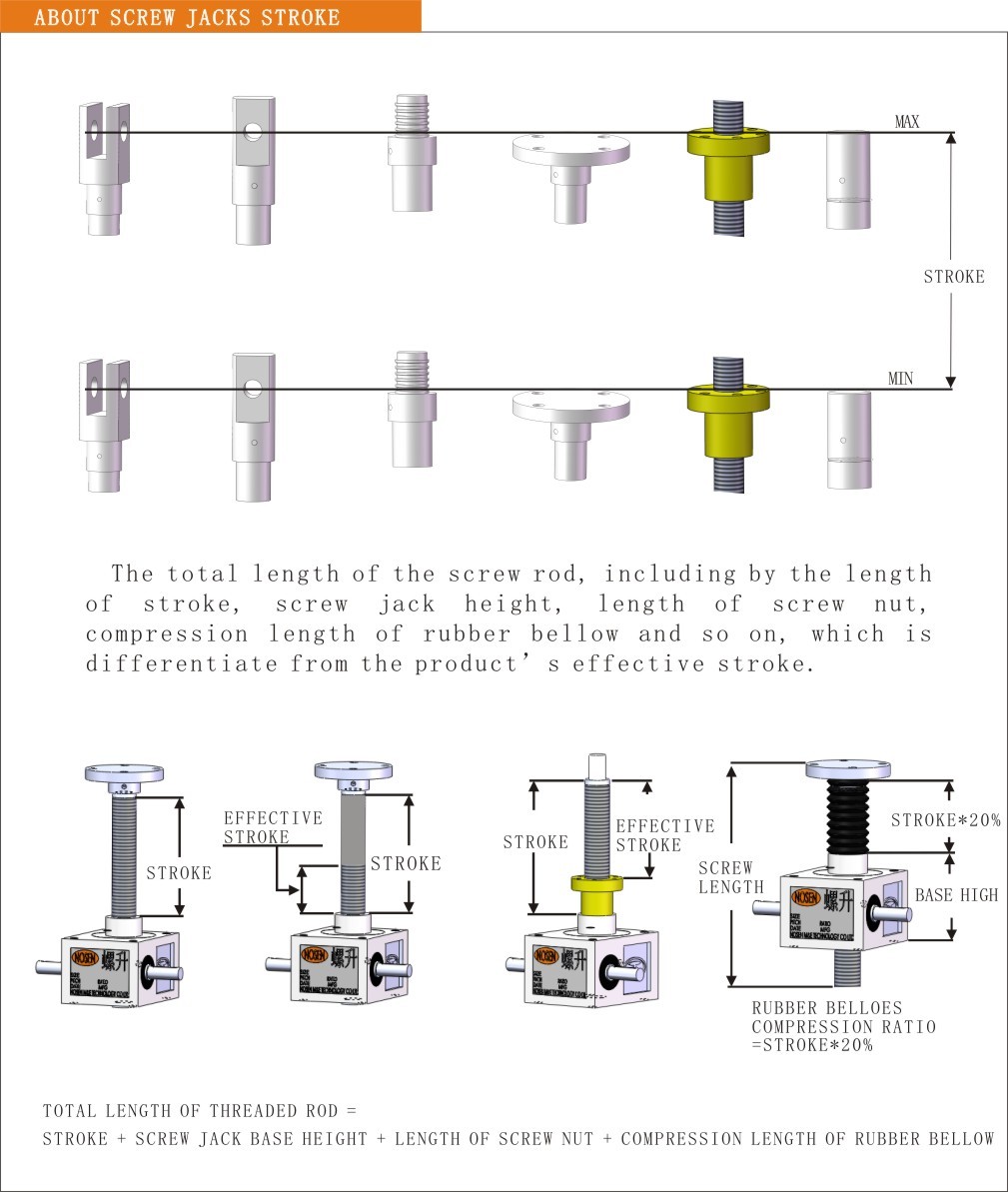

- Stroke
- Steel cover
- Rubber bellows
- Hand wheel
- View
