Ball Screw Jack RNG-016E/F
Retail price
Market price

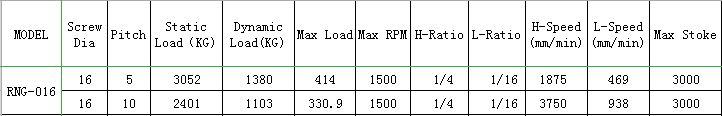

*Model: RNG-016E/F
*Screw Diam: 16 mm
*Screw Pitch: 5 or 10 mm
*Static Load: max 30 KN
*Dynamic Load: max 13.8 KN
*Speed Ratio: 1/4 1/16
*Lifting Speed: max 3750 mm/min
*Max stoke: 3000 mm
*Max Input: 1500 rpm
*Screw Type: ball screw
*Top End: plain end
*Power Source: electric, manual, both
Product Categories:
Ball Screw Jack RNG
Keywords:Screw elevator
Weight
kg
Quantity
-
+
Inventory
隐藏域元素占位
- Model

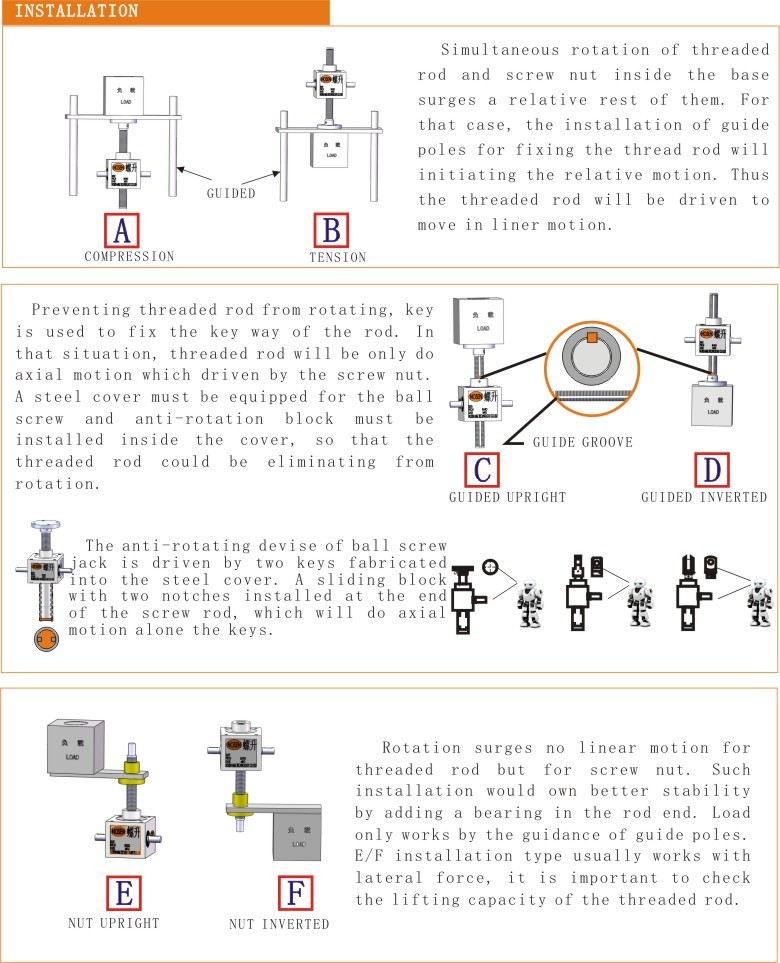

- Installation

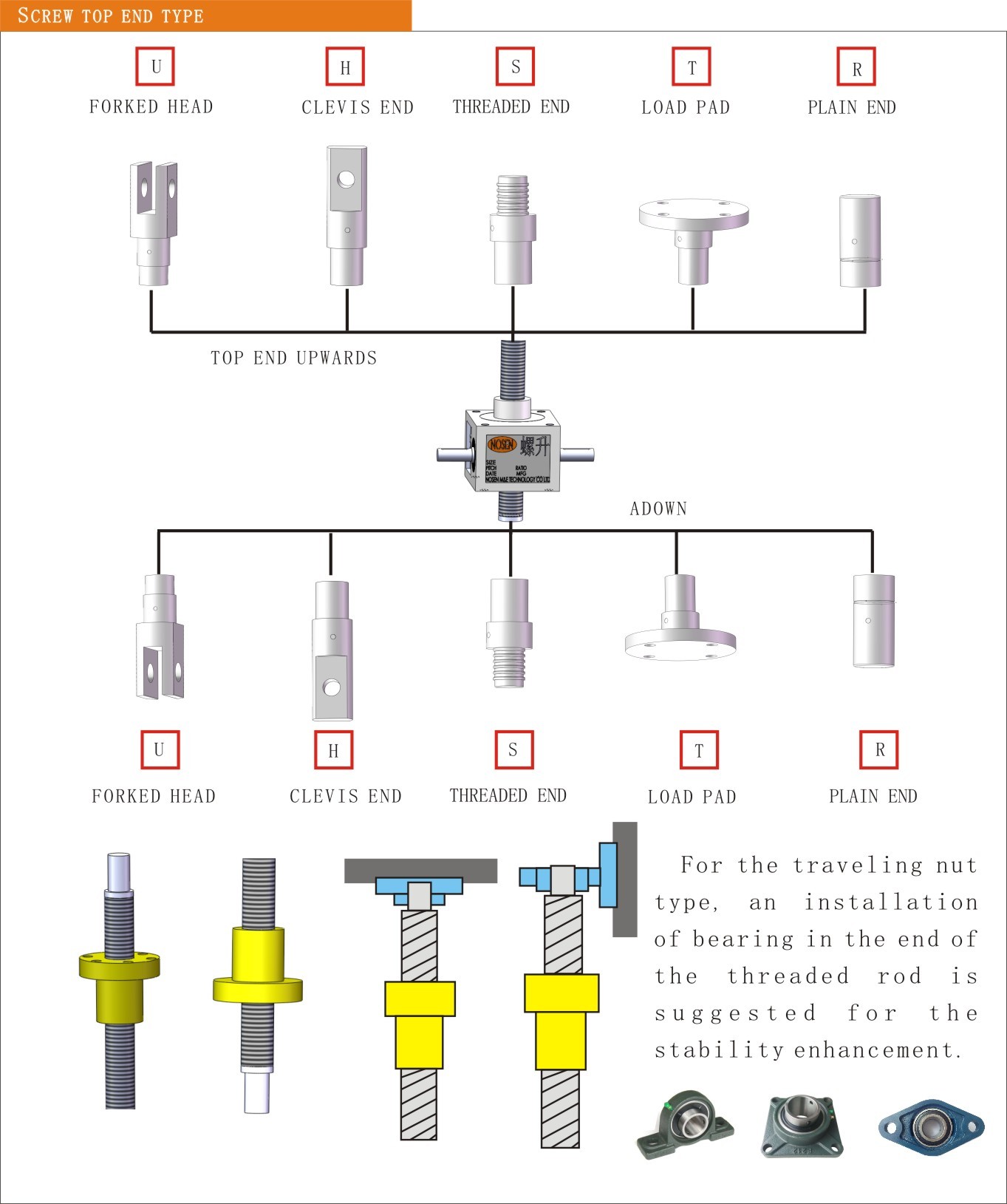

- Screw top end

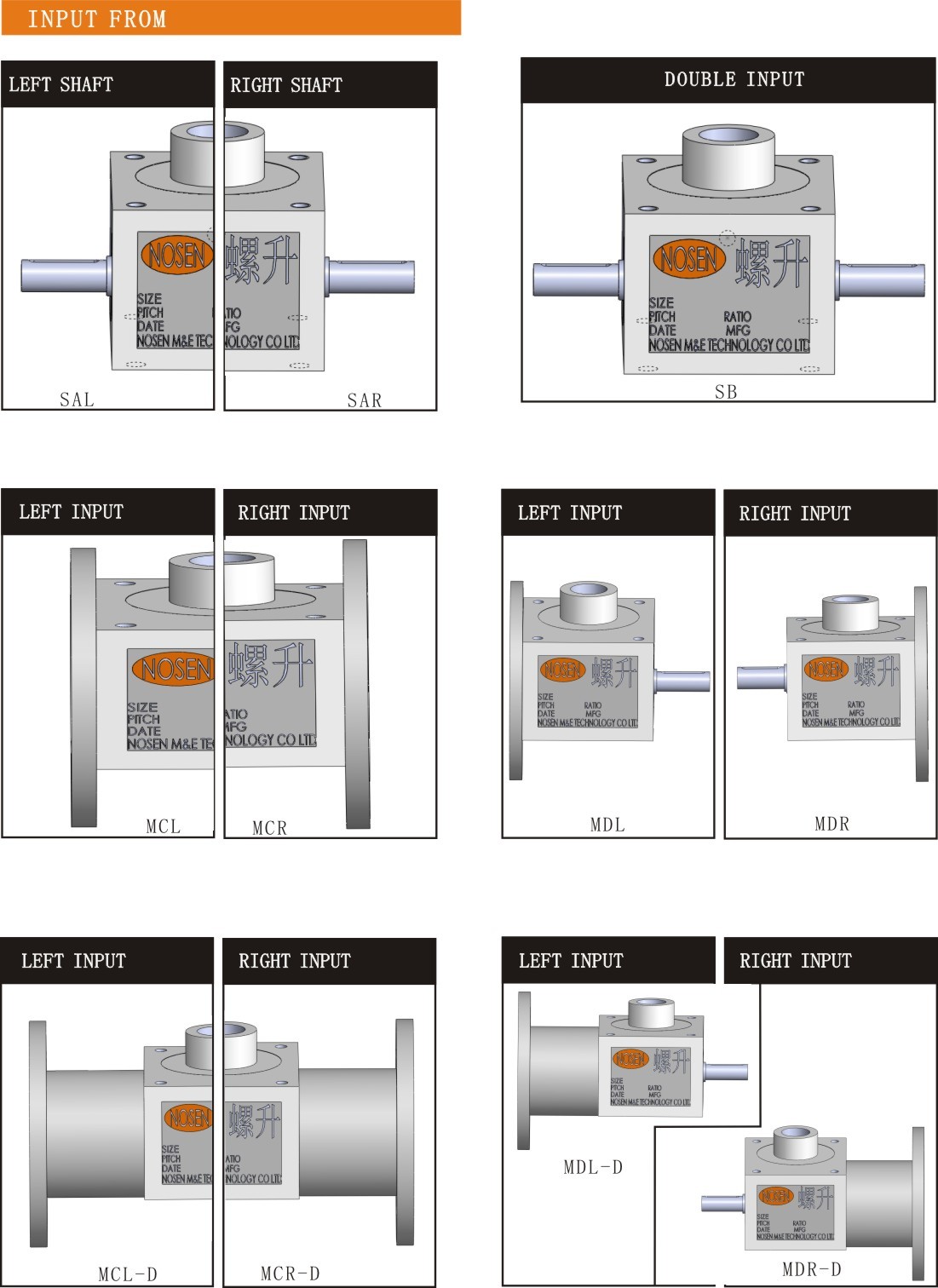

- Input from

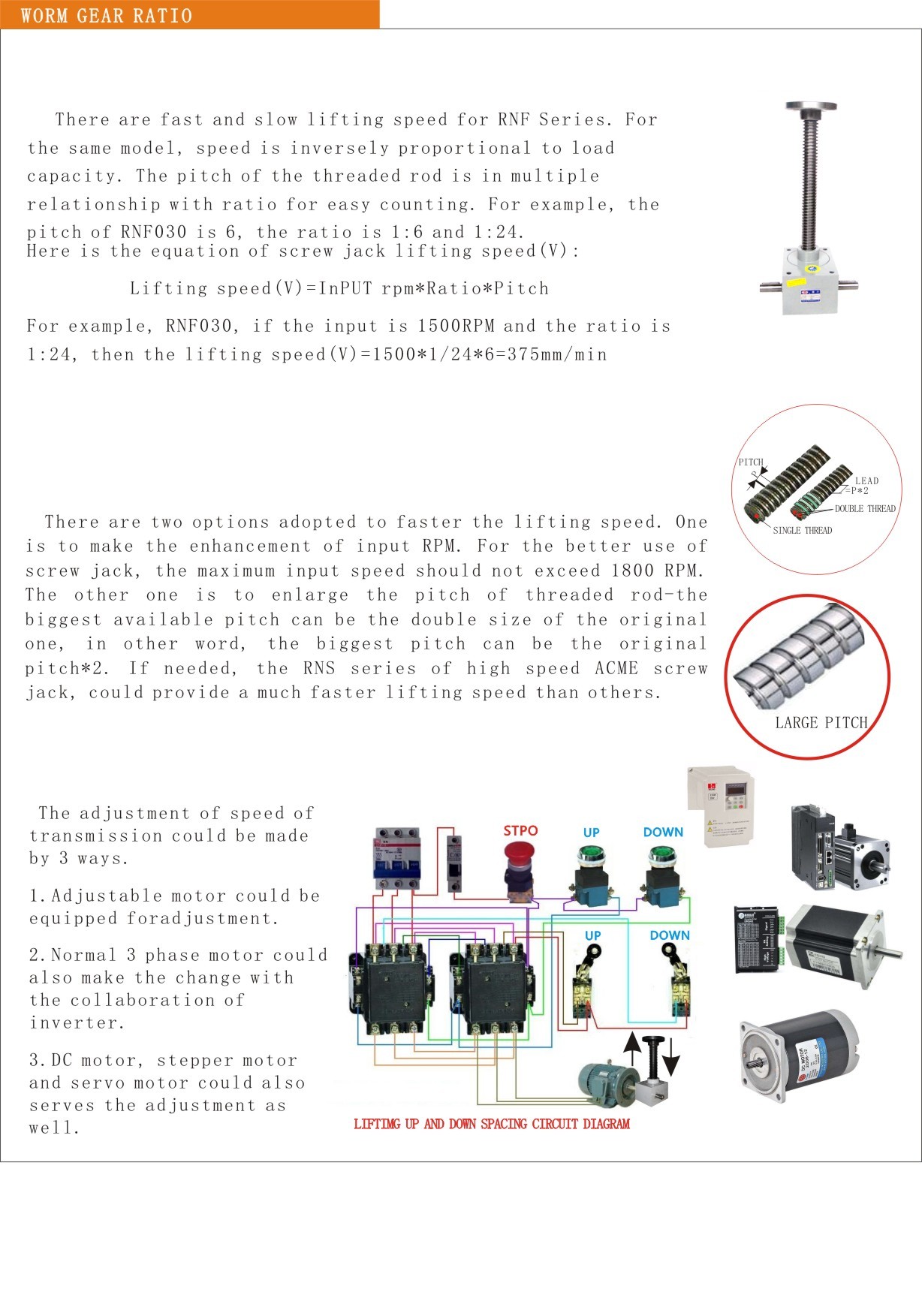

- Gear ratio

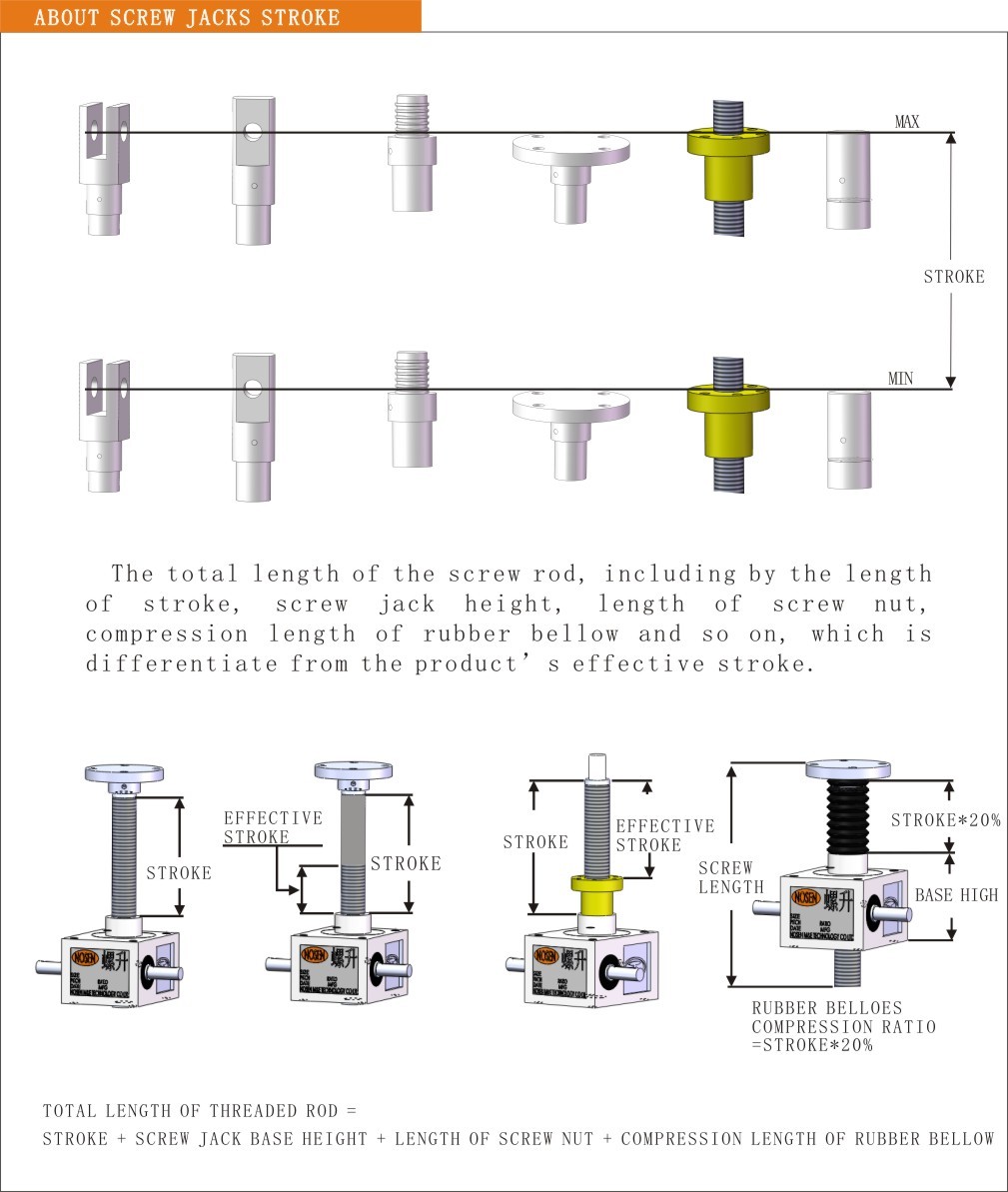

- Stroke
- Steel cover

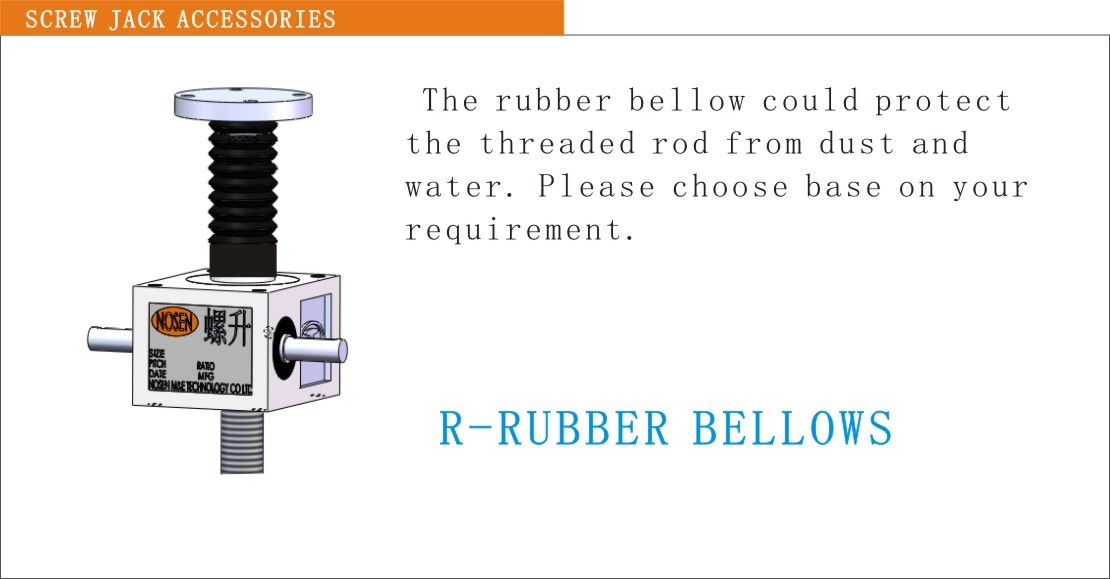

- Rubber bellows
- Hand wheel
- View
